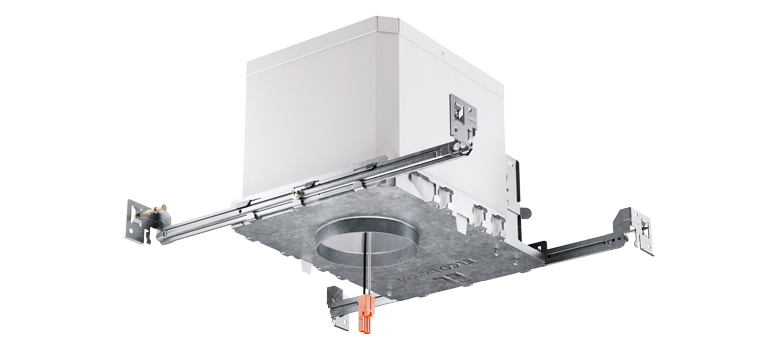

2" MAX. Adjustability IC Airtight New Construction Housing

EL276ICA

Construction:
 • IC rated for direct contact with insulation, for use in IC or non-IC conditions.
 • Housing accommodates up to ⅝" ceiling thickness.
 • Airtight housing with gasket to restrict airflow in accordance with ASTM E-283 air-tight requirements.
 • Steel housing for greater heat dissipation. Stamped galvanized steel frame.
Installation: Designed for ceiling plenums where 2x6 joists or taller joists are used. High strength swivel
hanger bars can easily be nailed to joists. Suitable for T-grid and drop ceiling applications. See installation
sheet for detailed information.
Junction Box: Positioned to accommodate straight conduit runs. Seven 1/2" trade size conduit knockouts, four
3/4" knockouts with pry-out knockout slots. 4 Romex pryouts with strain relief.
Hanger Bars: Pre-installed swivel hanger bars with TrueNail facilitate easy installation in regular lumber,
engineered lumber, and laminated beams. Integral T-bar slots for easy installation in T-bars. Spans up to 24"
and can be repositioned 90°. Score lines allow for tool-free hanger bar size reduction. Integral leveling flange
allows for single-person installation while aligning the housings with the joists.
Electrical:
 • Input Voltage: 120V AC.
 • Inherently protected.
Dimmability:
 • Dimmability based on lamp.
Lamp: Designed for use with ELCO 2" PEX Diecast Trims and KotoTM LED module
Listings:
 • cUL Listed for Damp Location.
 • cUL Listed for Wet Location with select trims.
 • cUL Listed for Feed Through.
 • cUL Listed for Direct Contact with Insulation and Combustible Material.
 • Airtight per ASTM E-283.
 • Install a JA8-2016-E lamp for Title 24 Compliance.
Warranty: ELCO Lighting warrants products will be free from defects in materials and workmanship for a
period of 5 years.
