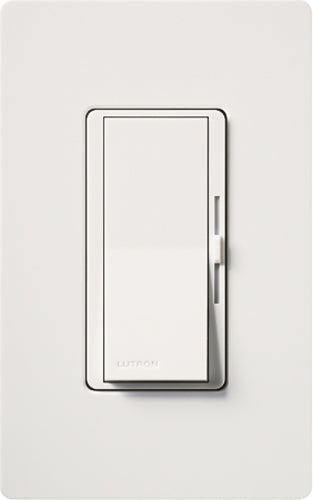

Diva 250 W LED+ Dimmer

Dimmer for dimmable LED, CFL, halogen, and incandescent bulbs. Features • Large paddle switch with a captive linear-slide dimmer for a standard designer wallplate opening.

• LED+ includes the most advanced technology for superior dimming of LED, CFL, halogen, and incandescent bulbs.

• UL® Listed to control: —  Dimmable LEDs —  Dimmable compact fluorescent lamps (CFL) with integrated ballast —  Lutron LTEA Hi-lume 1% forward-phase  LED driver — Halogen — Incandescent

• Low-end adjustment to accommodate a wide range  of bulbs. • 100% factory tested.

• NEMA SSL-7A Type 2 Compliant.

Power and Ratings

• 120 V~  60 Hz

• 250 W dimmable LED / CFL or

• 600 W  incandescent / halogen or

• Mixed bulb type per Multigang and Mixed Bulb Type Ratings table or

• 350 W Lutron LTEA Hi-lume 1% forward-phase  LED driver (maximum 8 drivers)
